System Architecture

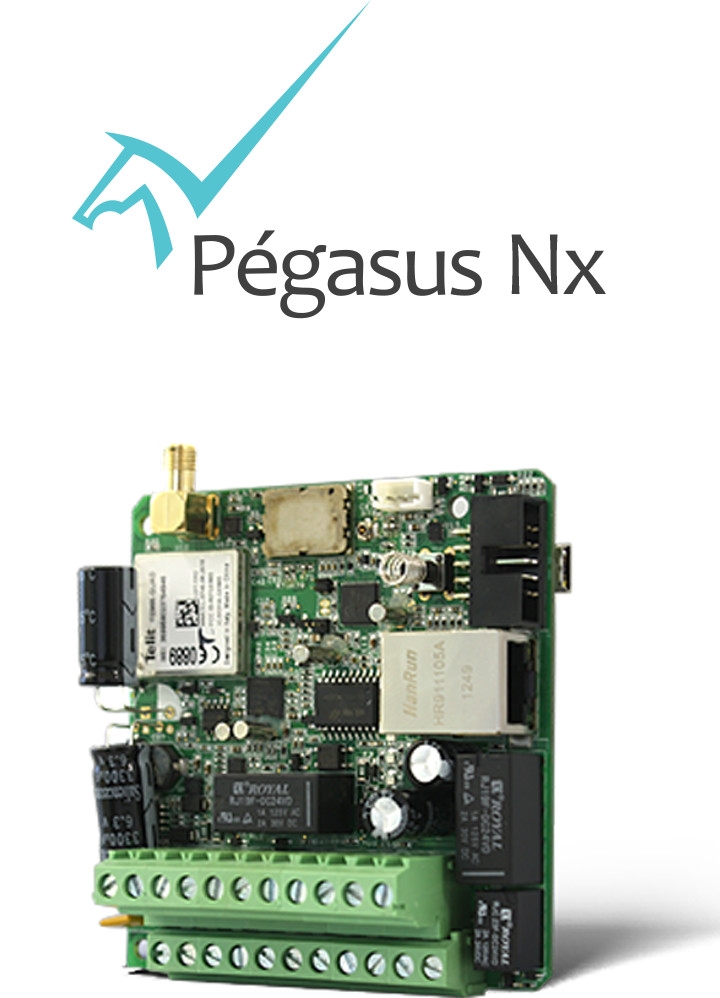

Main Features

• Built-in world-class GSM modules from Telit®;
• Powered by ARM® Cortex 32 Bit Processor;
• Communicates with monitoring station via GSM/GPRS (2xSIM-Cards), Ethernet (TCP/UDP, fixed or dynamic IP), Telephone Line, SMS, CSD and Voice Call;
• Built-in GSM Jammer Detector, essential for security systems based on GSM;
• Transmits by SMS or CSD in case of data network failure and monitored client's phone line cut;
• Exclusive FREE CALLS technology, which allows the transmission of Alive packets through voice channel;
• Compatible with any alarm panel, which communicates in the Contact ID Protocol;
• Allows simultaneous transmission to two different monitoring stations using different interfaces;
• Supports 8 fixed or dynamic IPs;
• Allows the verification of the monitored customer's telephone line;
• Has phone line cut detector with configurable delay;
• Allows phone line switching for alarm panel download;
• Allows remote configuration and firmware update;
• Has 4 PGMs (3 Open Collector and 1 Relay) that can be controlled remotely;
• Has 2 zones, which can be extended to 4 when operating in double-mode;
• Loop test - Allows testing of alarm panel operation;
• Supervises the physical connection with the alarm panel;
• Allows local or remote monitoring and analysis of its behavior and routines;
• Allows local or remote GSM signal measurement;
• Encrypted data transmission (128/256 bit);
• 2000mAh internal battery;
• Built-in tamper switch;
• Device status via ECO SMS;
• Modem firmware update over-the–air (FOTA) or local through cable;
• 512KB of memory for Logs, stores up to 5000 events.

Device Operation

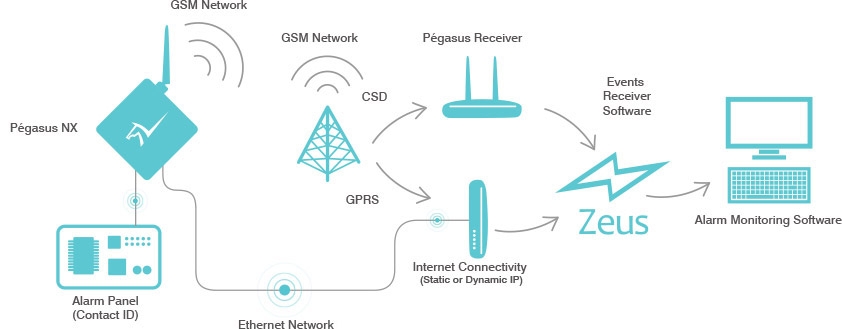

When energized, Pégasus™ Nx enters the Ethernet Network (TCP/UDP, fixed or dynamic IP) or GSM operator network via GPRS (Data Channel), and though it establishes connection with the Zeus™ Server. It creates an online communication channel between the monitored client and the Alarm Monitoring Station, allowing immediate transmission of all events generated by the alarm panel in the Contact ID Protocol.

All information transmitted by the device is encrypted (AES Rijndael 128/256 bit) ensuring maximum confidentiality.

The Zeus™ Server, on the other hand, is a multitask software that works as a virtual receiver, capturing the events transmitted by the device and transmitting them to the monitoring software like a conventional receiver simulating the communication protocol of Ademco-685, Sur-Gard MLR2-DG, Sur-Gard via TCP/IP, and Radionics D6600 receivers.

Applications

• Customers who have a stable internet connection and want to have their alarm panels monitored through this link;
• Customers whose alarm panels are monitored through the telephone line and want to increase the system reliability using an online communication;
• Customers whose alarm panels are monitored by telephone line and want to cut costs with calls (local and long distance);
• High security installations that require a high reliability and a minimum period to detect problems (banks, jewelers, etc).

Technical Specifications

System Architecture

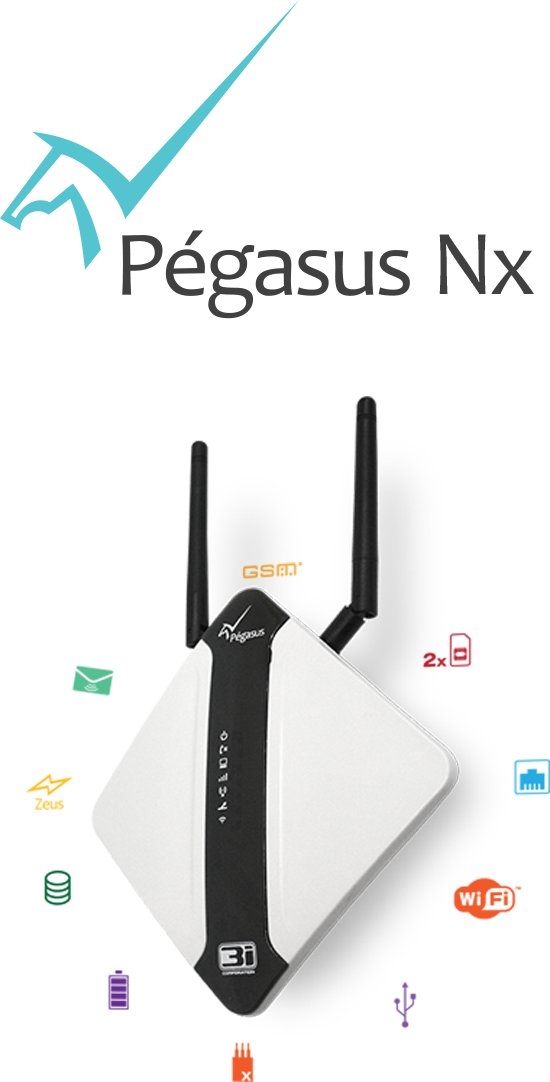

Main Features

• Built-in world-class GSM modules from Telit®;
• Powered by ARM® Cortex 32 Bit Processor;
• Communicates with monitoring station via GSM/GPRS (2x SIM-Cards), Ethernet (TCP/UDP, fixed or dynamic IP), Wi-Fi (2x Access Points), Telephone Line, SMS, CSD and Voice Call;
• Built-in GSM Jammer Detector, essential for security systems based on GSM;
• Transmits by SMS or CSD in case of data network failure and monitored client's phone line cut;
• Exclusive FREE CALLS technology, which allows the sending of Alive packets through voice channel;
• Compatible with any alarm panel, which communicates in the Contact ID Protocol;
• Allows simultaneous transmission to two different monitoring stations using different interfaces;
• Supports 8 fixed or dynamic IPs;
• Allows the verification of the monitored customer's telephone line;
• Has phone line cut detector with configurable delay;
• Allows phone line switching for alarm panel download;
• Allows remote configuration and firmware update;
• Has 4 PGMs (3 Open Collector and 1 Relay) that can be controlled remotely;
• Has 2 zones, which are extended to 4 zone inputs;
• Loop test - Allows testing of alarm panel operation;
• Supervises the physical connection with the alarm panel;
• Allows local or remote monitoring and analysis of its behavior and routines;
• Allows local or remote GSM signal measurement;
• Encrypted data transmission (128/256 bit);
• 2000mAh internal lithium-polymer battery;
• Built-in tamper switch;
• Device status via ECO SMS;
• Modem firmware update over-the–air (FOTA);
• 512KB of memory for Logs, stores up to 5000 events.

Functionality

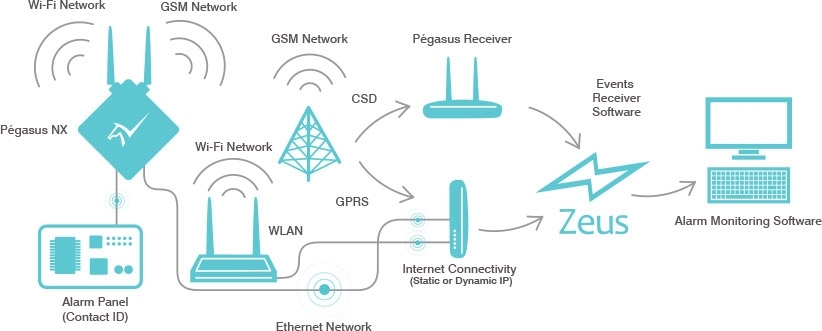

When energized, Pégasus™ Nx enters the Ethernet Network (TCP/UDP, fixed or dynamic IP) or GSM operator network via GPRS (Data Channel) or Wi-Fi Network (2x Access Points), and though it establishes connection with the Zeus™ Server. It creates an online communication channel between the monitored client and the Alarm Monitoring Station, allowing immediate transmission of all events generated by the alarm panel in the Contact ID Protocol.

All information transmitted by the device is encrypted (AES Rijndael 128/256 bit) ensuring maximum confidentiality.

The Zeus™ Server, on the other hand, is a multitask software that works as a virtual receiver, capturing the events transmitted by the device and transmitting them to the monitoring software like a conventional receiver simulating the communication protocol of Ademco-685, Sur-Gard MLR2-DG, Sur-Gard via TCP/IP, and Radionics D6600 receivers.

Applications

• Customers who have a stable internet connection and want to have their alarm panels monitored through this link;
• Customers whose alarm panels are monitored through the telephone line and want to increase the system reliability using an online communication;
• Customers whose alarm panels are monitored by telephone line and want to cut costs with calls (local and long distance);
• High security installations that require high reliability and a minimum period to detect problems (banks, jewelers, etc).

Technical Specifications
